11mm x 7.2mm x 3mm N40M Neodymium Diametrically Magnetized Ring Magnet Strong Rare Earth Ring Magnets (5 팩)

11mm od x 7.2mm id x 3mm thick N40M Diametrically Magnetized Ring Magnet Strong Neodymium Ring Magnets Nickel Coated Diametrically Magnetized Donut Magnet

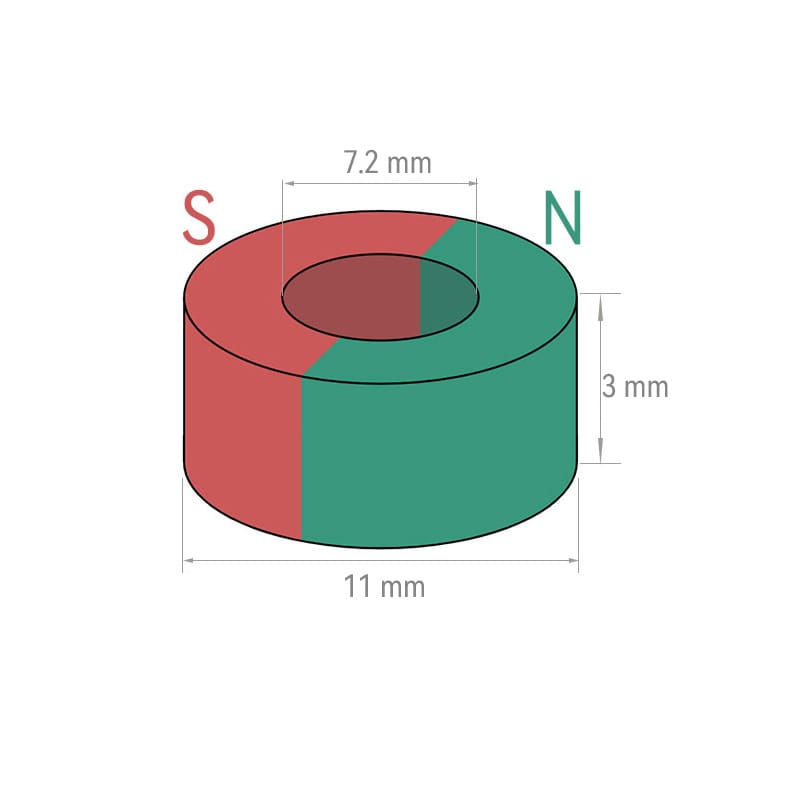

If you lay a diametrically magnetised ring magnet flat in front of you, the north pole is located, for instance, on the left half and the south pole on the right half. Consequently, these ring magnets stick together sideways, similar to the way you place backgammon pieces.

Dimensions: 11mm od x 7.2mm id x 3mm thick
Tolerances: ±0.1mm x ±0.1mm x ±0.1mm
Material: Sintered NdFeB, Grade N40M
Plating/Coating: Nickel-Plated (Ni-Cu-Ni)
색깔: 니켈
Magnetization Direction: Diametrical
Max Operating Temp: 100ºC
Surface Field: 2830 가우스

Please note that all neodymium rare earth magnets are fragile and require caution when installing to prevent shattering the magnet due to their brittle nature, and to avoid injury due to pinching.

Neodymium magnets are perfect for use in dry indoor areas. Diametrically magnetised magnets are often utilised in sensor technology or for magnetic couplings or switches.
