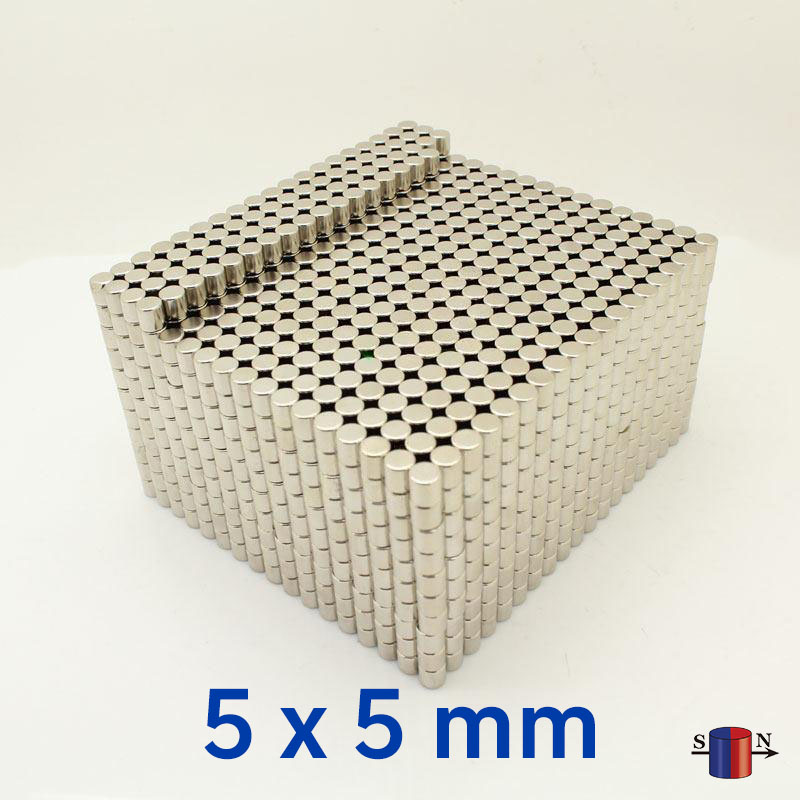

5mm x 5mm Diametrically Magnetized Disc Magnet N38 Strong Rare Earth Diametric Magnets Neodymium Radial Magnets 5x5mm
$2.95 – $7.98
| Model ID | D5x5mm Diametric |
| Material | NdFeB, Grade N38 |
| Shape | Rod / Cylinder |
| Diameter | 5 mm |
| Height | 5 mm |
| Tolerance | +/- 0.1 mm |
| Coating | Nickel-plated (Ni-Cu-Ni) |
| Magnetisation | Diametrical (Poles on Curved Sides) |
| Max. working temperature | 176°F (80°C) |
| Weight(1 piece) | 0.73 g |
N38 5x5mm Diametrically Magnetized Neodymium Rod Magnets Strong Rare Earth Cylinder Magnets Home Depot Amazon Sale radially magnetized neodymium cylinders
Please note: This rod is the only rod magnet that is diametrically magnetised. This means that these rods will not lay endways on each other, but rather sideways, like fish sticks. This allows for interesting experiments, but is rather unusual in everyday life.
Specification:
- Dimensions: 5mm dia x 5mm thickness
- Material: NdFeB, Rare Earth
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Tolerances: ±0.1mm
- Magnetization Direction: Radial magnetization
- Surface Field: 2680 Gauss
- Max. Operating Temp: 176°F (80°C)
- Brmax: 13,600 Gauss
- BH max: 38 MGOe
- Uses: Crafts, Science Projects, etc.
- TINY MAGNETS ARE VERY HARD TO PRODUCE
Neodymium magnets are the world’s strongest magnets. All magnets are not created equal! Applied Magnets offers the highest quality magnets with consistent performance at lowest price. Our strong magnets are designed & manufactured to meet stringent quality standards using the latest technology.
Neodymium magnets (also known as Neo, NdFeB, NIB or super magnets) , a type of rare earth magnets, are the permanent magnets made from neodymium, iron, boron and other minor elements.
